Product Details:
Payment & Shipping Terms:
|
|
|||||
| Specification Parameters | |||||
| Main Parameters |
Item No.: | CA0304 | |||

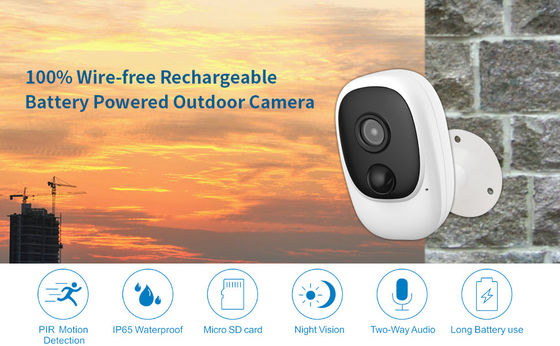

| Product name | Tuya low power consumption battery camera | ||||
| Operation mode | Tuya Smart APP | ||||
| Main chip | Hisilicon3518 | ||||
| Sensor | GC2063 | ||||
| Resolution ratio | HD: 1920×1080；SD: 640×480 | ||||
| Lens | 3.2mm | ||||
| Black and white night vision | 10meters | ||||
| Full color night vision | 10meters | ||||
| Switch mode | Automatic switching / manual switching | ||||
| Main Functions |
Pan&Tilt PTZ | Non | |||
| Audio input | Support | ||||
| Two way intercom | Support | ||||
| ONVIF | Non-support | ||||
| WiFi transmission | Support | ||||
| RJ45 network interface | Non | ||||
| POE power transmission | Non-support | ||||
| Google Home, Amazon Alexa voice linkage | Could be customized, Optional | ||||
| Motion detection | Support | ||||
| Humanoid detection | Support | ||||
| Moving objects tracking | Non-support | ||||
| Alarm linkage | Support | ||||
| Alarm push | Support | ||||
| Remote viewing / playback | Support | ||||
| Cloud storage | Cloud storage | ||||
| Local storage | Extend / support 128G TF Card | ||||
| One-key restore default | Support | ||||
| Reset key | External | ||||
| Other Parameters |
Light sensitivity | Intelligent dynamic | |||
| Image coding and decoding | H.264 | ||||
| Video system | 1080P25@FPS | ||||
| Video mode | HD / SD | ||||
| Picture flip | Support | ||||
| Working stream | 80KB | ||||
| Sound alarm | Non-support | ||||
| Weak binding | Support | ||||
| Network transmission | Support 2.4GHz wireless network; support WPA and WPA2 encryption | ||||
| Network protocol | Support TCP/TP,IPv4,DHCP,RTSP,P2P； | ||||
| Customized PID and APP model number | Support | ||||
| Power Supply | DC5V 1A | ||||
| Working temperature | –20°C～50°C | ||||
| Working humidity | 20%～85% | ||||
| Shell material | PVC | ||||
| Appearance size | 95*62*55(mm) | ||||
| Package size | 136*130*71(mm) | ||||
| Weight | 430g | ||||
| Installation mode | Wall hanging | ||||
| Battery | 3.7V, 12000mA 4pcs 18650 rechargeable battery | ||||
| Full charge time | 2~3days | ||||
| Battery standby time | 10months | ||||
| Battery using life | 4 months (Triggered 10 times a day) | ||||
| Energy consumption | 150μA stand by; 220ma working state | ||||
| Standby trigger distance | 8meters | ||||
| Waterproof grade | IP65 | ||||
