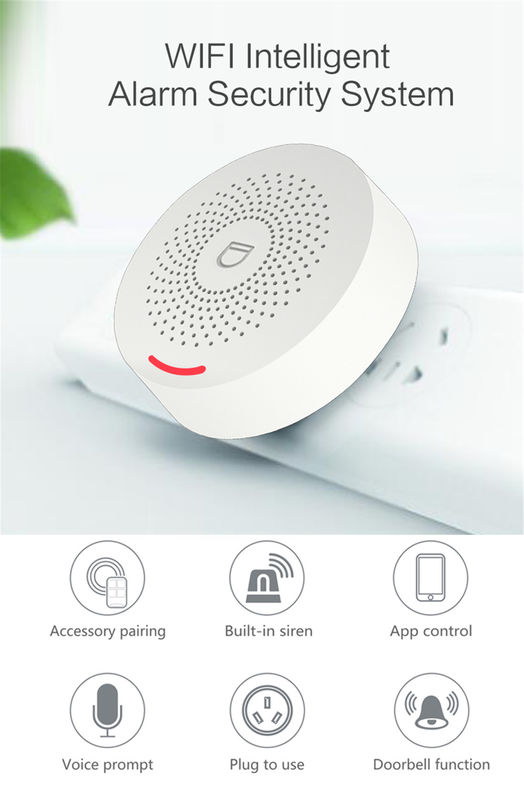

Wi-Fi Home Security Alarm System(PW-150)

Wi-Fi Home Security Alarm System(PW-150)

Product model:SD0020
Communication type:Wi-Fi
Sales Area:North America,South America,Europe,Southeast Asia,Middle East,Australia

Product Parameters
Product model:PW-150
Product Category:Alarm Hub
Market Specifications:EU Standard,US Standard,UK Standard,AU Standard
Battery Type:NO
Function Description:
Main features
- Simple and generous design, good operation experience.
- Bilt-in powerful 32 digits Cortex-M3 controlling CPU.
- Support WIFi network & APP pushing ensure the alarm stable.
. More than 4 remote corntrllers and 50 wireless zones matching and
storaging space.
- Support main gate 1 hall 1 SOS 1 bedroom 1 window 1 balcony
/circumference I smoke 1 gas alarm. Co leakage 1 water leakage
multi kinds alarm setting.
- Support main power breakdown alarm, spare battery low power.
alarm and other wxtending alarm.
. Support wireless sensor low power alarm.
. Support out arm, stay arm. 24 hours zone, dorbell and other alam.
- Support voice notificatin.
Technical paramter
Input current: AC220V
Standby power. <0.5W
Operation power. <6W
Wireless frequency: 315/433Mhz
Wireless code: eV1527
WiFi system: IEEE802.11b/g/n wireless standard
Spare bettery: 3.7V/280mAh Lihom battery
Operation Temperature: -10-55C
Relative humid: <80%(no freezen)
Product size: Diameter79mm, heighth 46mm (main par tickness 30mml
Sales Area:North America,South America,Europe,Southeast Asia,Middle East,Australia
Minimum Order Quantity:100
Material:ABS
Warranty:12 month
Bulk Delivery:15 day

Product Functions
Device Mode
Alarm tone
Zone attribute
Entry Delay
Factory reset
Sub admin
Power State
Exit Delay
Voice volume
Silence siren
Doorbell volume
Sub class
Sub state
Siren Duration
Doorbell Chimes Forbid
Alarm message
Master state
Sub type
Master language
